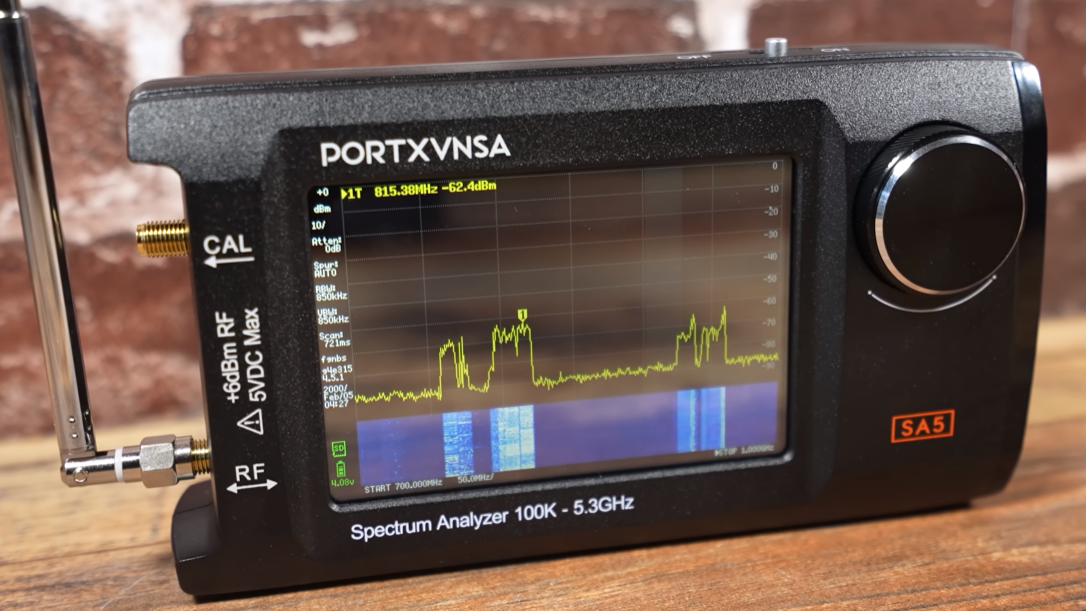

The SA5 handheld spectrum analyzer is a versatile, 2in1 RF test tool that packs a 4inch IPS touch display, a 5000 mAh battery, and wide frequency coverage into a rugged handheld unit. Designed for field and lab use, it serves both as a high-performance spectrum analyzer and a signal generator. Its compact form factor and long battery life (around 10 hours on a single charge) make it ideal for mobile measurements. In practice, RF engineers and hobbyists can use the SA5 to scan signals from low MHz bands up through the GHz range, inspect modulation and interference, or even generate test tones for system checks.

The SA5’s wide frequency range is a major strength. In normal mode it analyzes from 0.1 MHz (100 kHz) to 800 MHz, and in “Ultra” mode it calibrates signals up to 5.3 GHz (with monitoring capability out to 12 GHz). This covers popular RF bands (ISM, cellular, WiFi, etc.) and microwave links. The device also offers a high dynamic range – on the order of 70 dB at 30 kHz resolution bandwidth – allowing it to distinguish weak signals amid strong ones. Users can select from very fine resolution filters(as narrow as 0.2 kHz) up to 850 kHz, which lets them zoom in on tiny spectral details or sweep quickly. These technical advantages mean the SA5 can capture faint signals or noisy interference while avoiding overload from strong transmitters.

Compact, Rugged Design and Long Battery Life

The SA5 is built for portability without sacrificing usability. Its 4.0inch IPS LCD touchscreen (480×320) displays clear, colorful spectrum plots with intuitive menu controls. A ruggedized plastic housing (about 164×92×42 mm, ~600 g) protects the unit in the field, and the bright, highdefinition screen is readable in sunlight. Internally it carries a 5000 mAh rechargeable battery, providing roughly ten hours of continuous operation. This long runtime is crucial for on-site testing or classroom demos where power outlets may be unavailable. The SA5 also includes a built-in calibration signal generator and an optional 20 dB low-noise amplifier (LNA) to boost sensitivity when tracking weak transmitters. With dual SMA inputs (and included telescopic antenna and RF cables), engineers can quickly set up field measurements. USBC connectivity allows charging on the go and even PC control of the analyzer, enabling data transfer and remote operation.

Dual Function: Spectrum Analyzer and Signal Generator

One of the SA5’s standout features is its multi-functionality. In spectrum analyzer mode, it sweeps the RF band and plots signal amplitudes (just like a benchtop SA). In signal-generator mode, the SA5 can output RF waveforms for testing other equipment. It generates pure sine waves from 0.1 MHz to 800 MHz and square waves up to 4.4 GHz, and can even produce RF calibration test signals up to 5.3 GHz. This means an engineer can both measure an antenna or receiver and inject test signals into it using the same handheld device. The twoinone design saves cost and space: it replaces separate analyzer and signal-generator instruments in many scenarios. For example, one could use the SA5’s generator to produce a known tone while using the analyzer function to verify an amplifier’s response, all from the same gadget.

Key technical specs of the SA5 include:

Frequency Range: 0.1 MHz–800 MHz (standard); extends to 5.3 GHz in Ultra mode.

Resolution Bandwidth (RBW): 0.2 kHz to 850 kHz switchable.

Dynamic Range: ~70 dB at 30 kHz RBW (enough to see low-level signals alongside strong ones).

Display: 4.0″ IPS touchscreen (480×320) with 450 points per scan.

Battery: 5000 mAh (~10 hr operation).

Signal Generator: Sine 0.1–800 MHz, Square to 4.4 GHz, RF test up to 5.3 GHz.

Other: Built-in 20 dB LNA (gain 5 dB NF), microSD card slot for data, USBC PC interface.

Each of these features comes with intuitive controls (touchscreen or knob) so engineers can set spans, markers, and RBWs quickly in the field. Despite its power, the SA5 is inexpensive compared to lab-grade analyzers, offering an exceptional value for its capabilities.

Real-World Applications

The SA5’s capabilities make it useful across many RF and electronics tasks. Field engineers can use it for spectrum surveys or interference hunting: its wide frequency span and sensitivity allow detection of hidden transmitters, noise sources, or spurious emissions. For example, the high dynamic range helps spot a weak jammer amidst crowded cellular bands. Its built-in generator and LNA also make the SA5 handy for EMC pre-compliance testing or equipment debug. A developer can inject a test signal and verify filters or amplifier linearity without bulky bench gear. Other use cases include RF system alignment, antenna pattern checks, and educational demos. In fact, reviewers note that the SA5 is “an essential tool for various applications in electronics and telecommunications”. Its multi-function design means one instrument can handle transmitter alignment one moment and spectrum monitoring the next – a time-saver for professionals and enthusiasts alike.

Overall, the SA5’s combination of wideband performance, high resolution, and portability makes it a compelling choice for RF work. Whether tracking down an interfering signal at 900 MHz, characterizing a WiFi link at 2.4 GHz, or setting up a test signal for a new design, the SA5 is ready to deliver lab-quality analysis in the field. Its value and versatility suggest that RF technicians, telecom installers, and electronics hobbyists will eagerly adopt it as part of their toolkit.
